Getting started

Your job runs asynchronously. Respond immediately to the initial HTTP request with 202 Accepted to confirm that you have accepted the job, then process the request in the background. Future Ordering authenticates the call using the credentials you supplied when the job was registered.

For details on the data models your job produces, see Menus and Stores.

Initial request

The initial request contains all the information needed to start your job. Future Ordering sends it as a POST to the endpoint you provided when registering the job through Managing import flows.

{
	"runId": "some-example-run-id",
	"flowId": "some-example-flow-id",
	"jobId": "your-job-id",
	"data": {
		"<entityId>": {
			"references": ["some-reference-name-for-entity"],
			"dataSources": ["datasources-that-contributed-to-model"],
			"route": "https://example-sas-endpoint.com/1/url-route?query-params=true"
		},
		"<otherEntityId>": {
			"references": ["some-other-reference-name"],
			"dataSources": ["some-datasource"],
			"route": "https://example-sas-endpoint.com/2/url-route?query-params=true"
		}
	},
	"timeOut": "00:30:00",
	"configuration": {
		"skipOnStuff": true
	},
	"payload": {
		"countries": [
			"Sweden"
		]
	},
	"reportConfiguration": {
		"progress": "https://api.futureordering.com/orch/reports/progress",
		"complete": "https://api.futureordering.com/orch/reports/complete",
		"error": "https://api.futureordering.com/orch/reports/error",
		"entity": "https://api.futureordering.com/orch/runs/some-example-run-id/jobs/your-job-id/entities/"
	}
}

Properties

Property	Type	Required	Description
runId	string	Yes	The id of this specific run.
flowId	string	Yes	The id of the flow, meaning the type of import.
jobId	string	Yes	Your job's id.
data	object	Yes	The entities available to your job, keyed by entity id.
data.<entityId>	object	Yes	A single entity. The key is the entity name, such as 212 for a store or priceGroups for menus.
data.<entityId>.references	array<string>	Yes	External references for the entity. Currently used for stores.
data.<entityId>.dataSources	array<string>	Yes	The sources that contributed to the entity's metadata.
data.<entityId>.route	string	Yes	SAS URL for the entity's data.
timeOut	string	Yes	How long your job has to finish before the run times out, formatted as hh:mm:ss.
configuration	object	No	Static fields configured when your job was registered. Sent with every call to your job.
payload	object	No	Run-specific fields set when the run starts. Sent to every job in the run.
reportConfiguration	object	Yes	The URLs your job reports and uploads to.
reportConfiguration.progress	string	Yes	URL to send progress reports to.
reportConfiguration.complete	string	Yes	URL to send complete reports to.
reportConfiguration.error	string	Yes	URL to send error reports to.
reportConfiguration.entity	string	Yes	URL to upload entities to.

note

If the run exceeds timeOut before your job reports completion, the run fails. See Managing import flows for how failures are surfaced in Navigator.

Configuration and payload

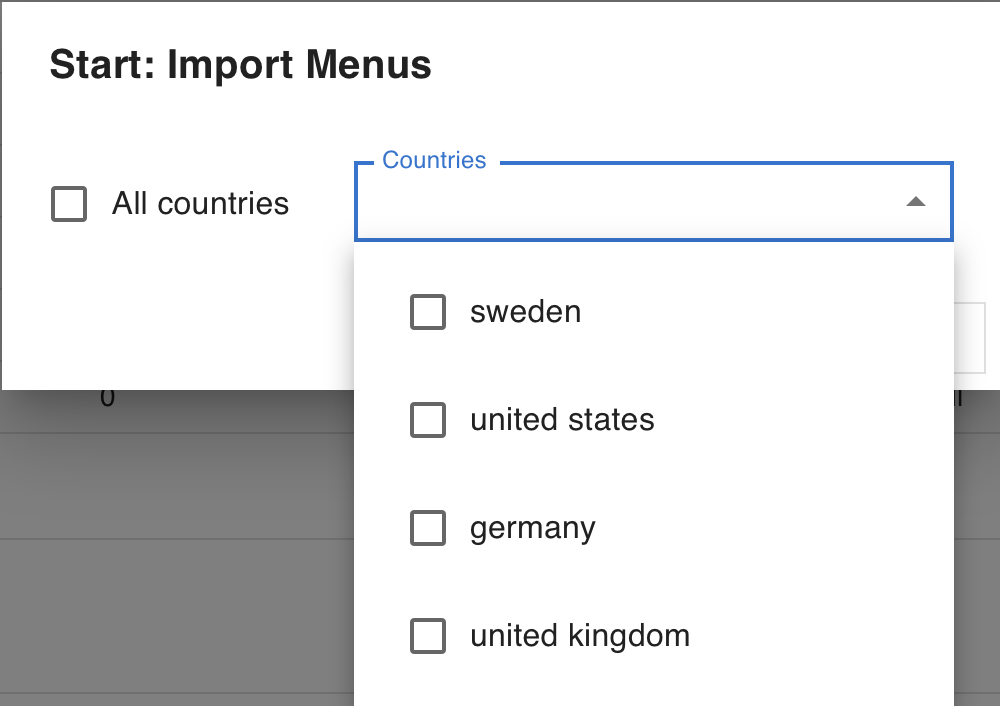

The payload field contains run-specific configuration, set when a run starts. The configuration field contains static configuration, set once when the job is created. The example above uses the country configurator - when starting a run, an operator can specify which countries the import covers.

Opening hours example

Next steps

• Uploading data - how to upload entities and get their URLs.
• Reporting progress - sending progress, complete and error reports.
